XHD35

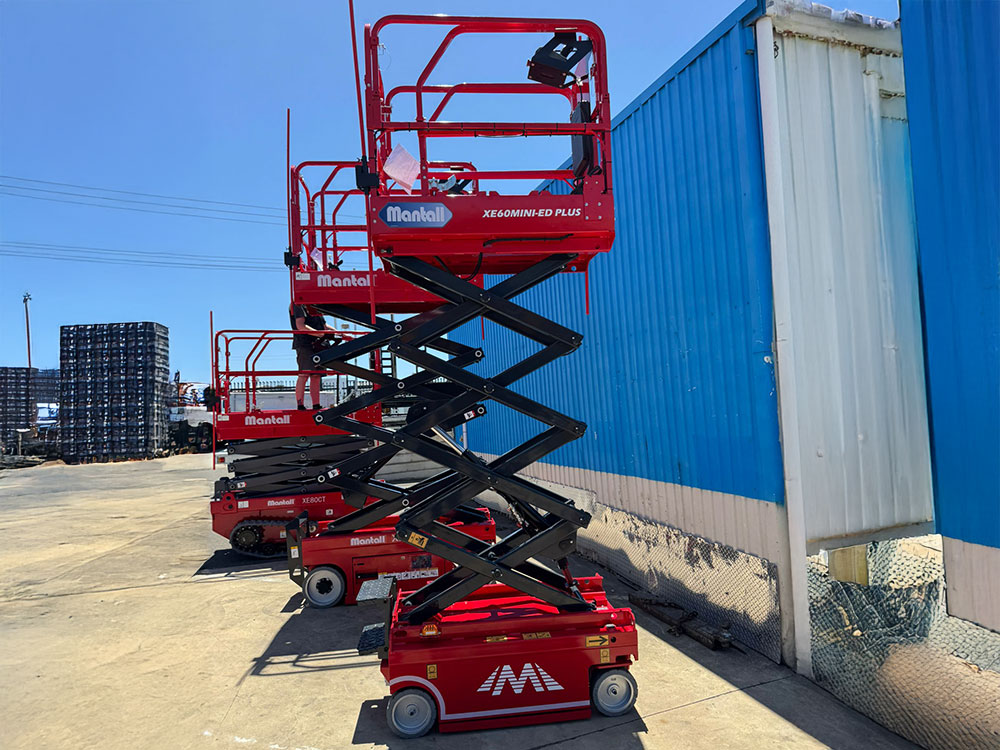

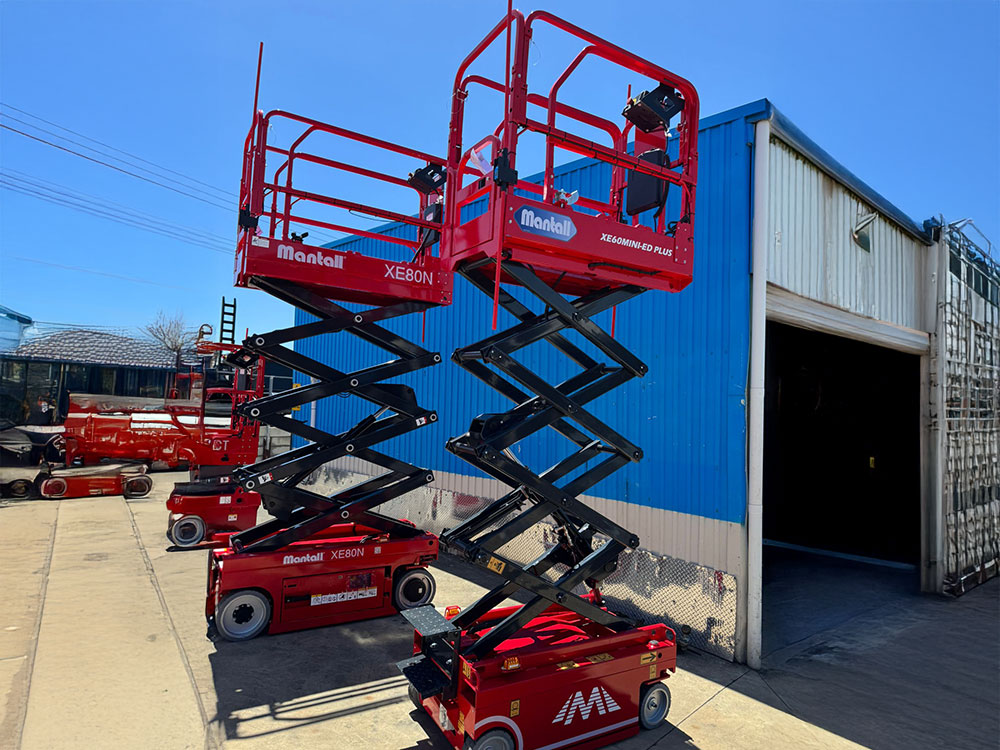

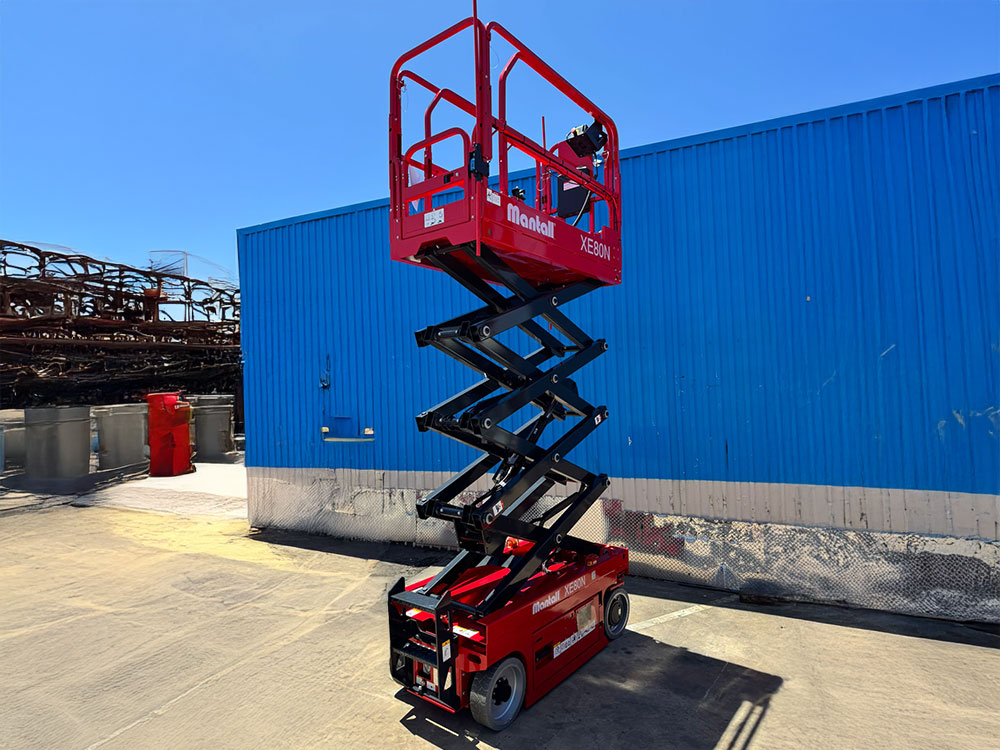

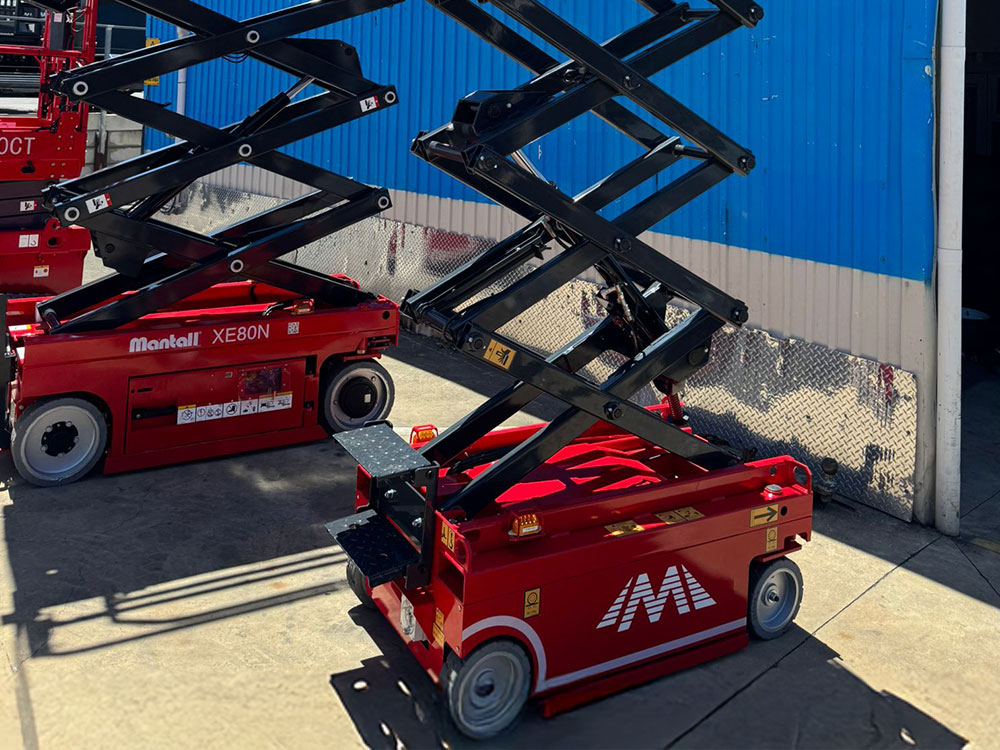

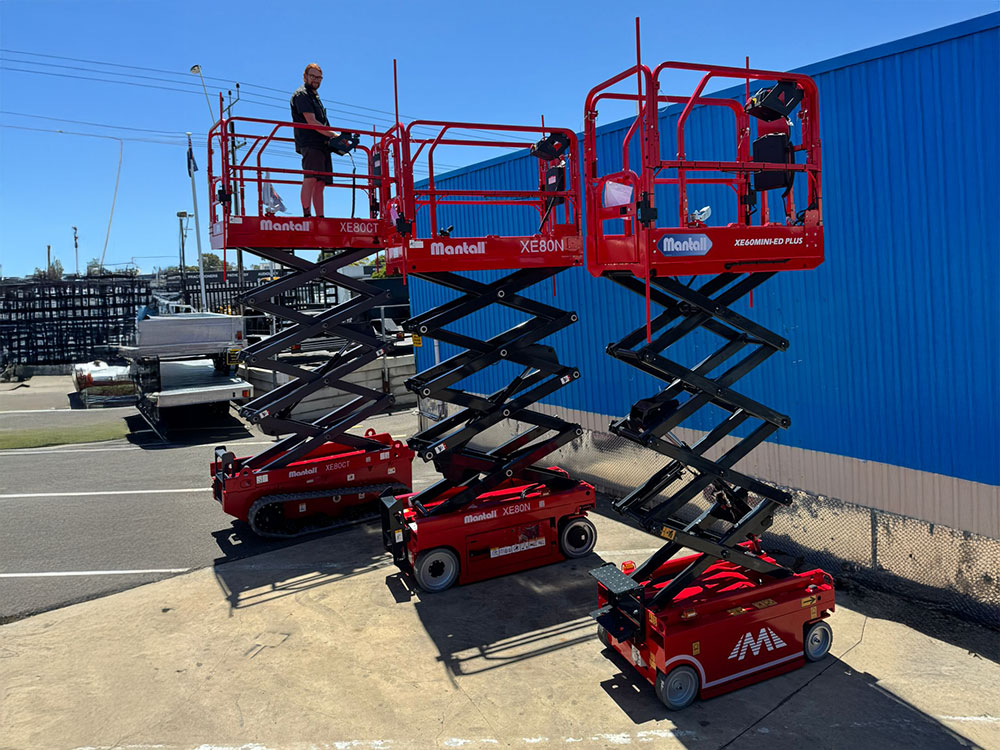

Self Propelled Electric Scissor Lift
Standard Features:
Manual emergency lower system- Platform Swing Gate
- Extended Platform
- Foldable platform
- Multi-Disc wet brakes
- Manual brake release
- Pothole protection
- Non-marking tires
- AC power to platform
- Tilt alarm
- Buzzer
- Safety brackets
- Charger indicator
- Forklift pockets

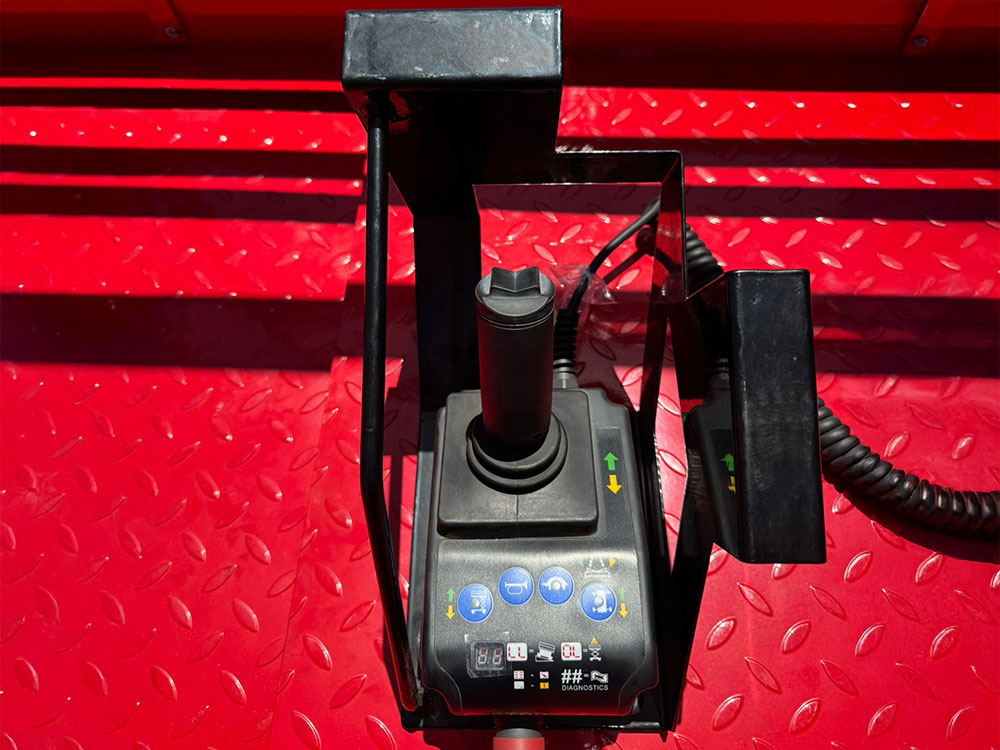

- Diagnostic system
- Maintenance-free battery
- Dual Flashing beacon
Manual emergency lower systemOption Features:
- Air line to platform
- Power socket to platform
- Platform work light
- Overload sensor
- Horn
- Anti-collision system

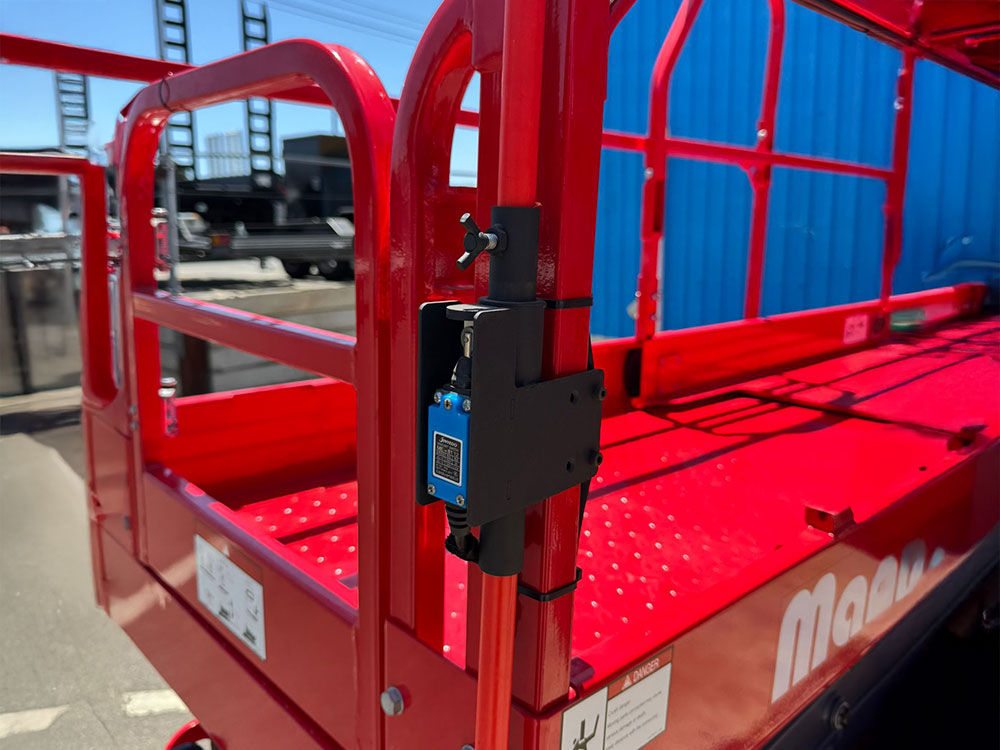

- Top Limit Protection Auto-stop device
- Motion alarm
| Working height max | 7.8m |
| Platform height max | 5.8m |
| Platform height min | 1.03m |
Price: $$0.00 Incl. GST
Dealer Costs not Included and May Vary.
Product Parameters
| Working height max | 7.8m |
| Platform height max | 5.8m |
| Platform height min | 1.03m |
| Platform extension size | 0.9m |
| Lifting capacity | 230kg |
| Lifting capacity on the extension | 115kg |
| Dimension of the platform B*C*A | 1.64×0.75×1.1m |
| Platform length-extended K | 2.55m |
| Platform Skirting board height L | 0.15m |
| Overall length and width E*F | 1.83×0.77m |
| Height stowed D | 2.18m |
| Height-guardrails folded M | 1.86m |
| Wheelbase G | 1.36m |
| Ground clearance H | 0.08m |
| Ground clearance-deployed potholes | 0.02m |
| Turning radius-inside | 0.8m |
| Turning radius-outside | 1.56m |
| Raising time/Lowering time | 14/11s |
| Drive speed-stowed | 3.8km/h |
| Drive speed-raised | 0.7km/h |
| Gradeability | 25% |
| Tilt (front to back/side to side) | 3° / 1.5° |

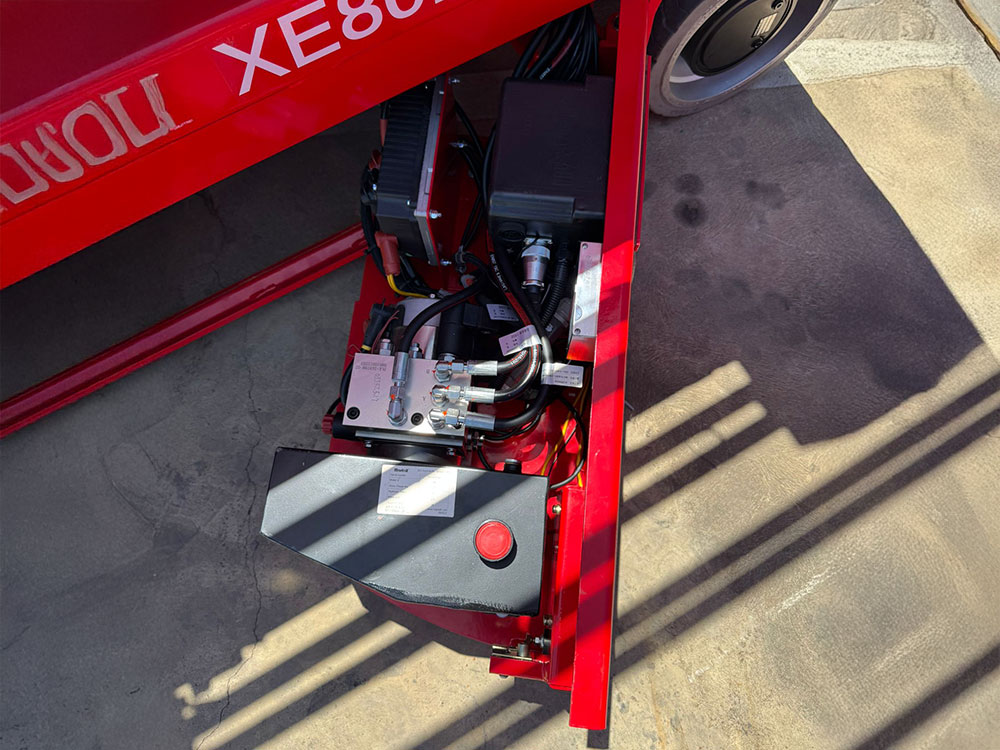

| Drive Motor | Hydraulic/Electric |
| Hydraulic tank capacity | 8L |
| Tire size | 323x100mm/solidtire |
| Max. Platform occupancy | 2 pers |

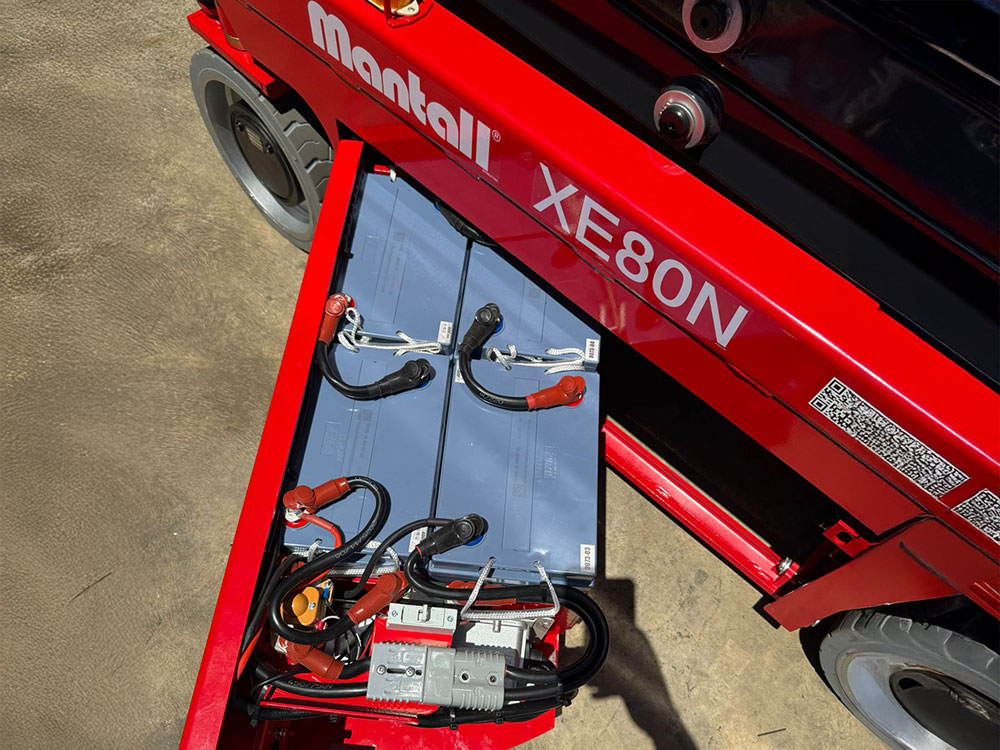

| Power source | 4×6V/235Ah |
| CE/AUS Standard | 1542kg |
