XHD35

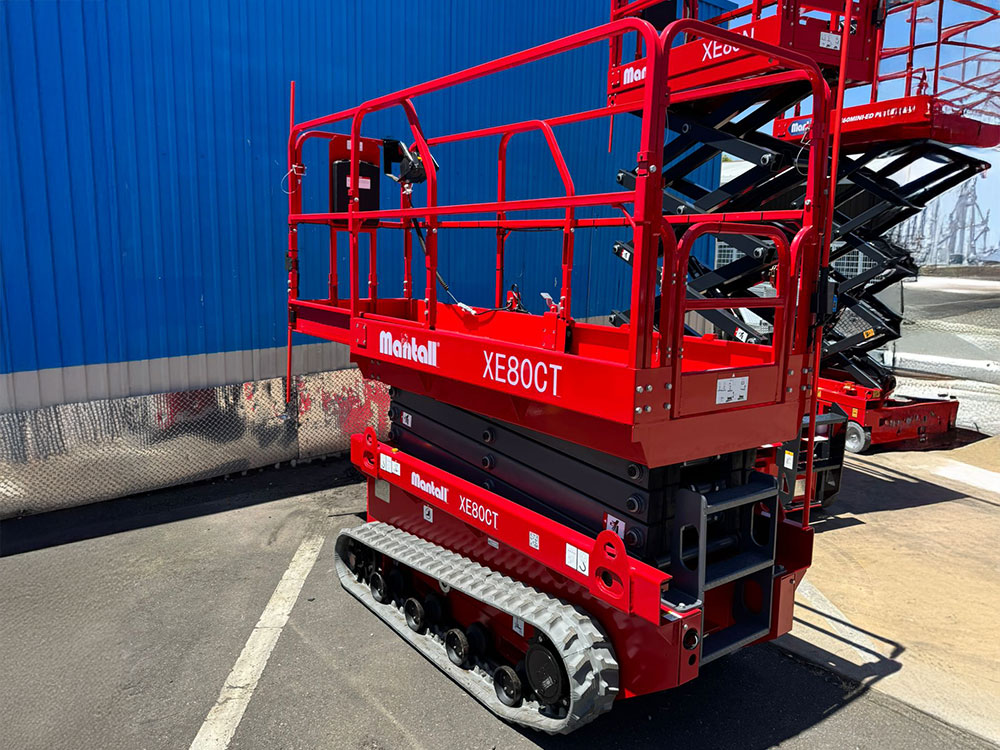

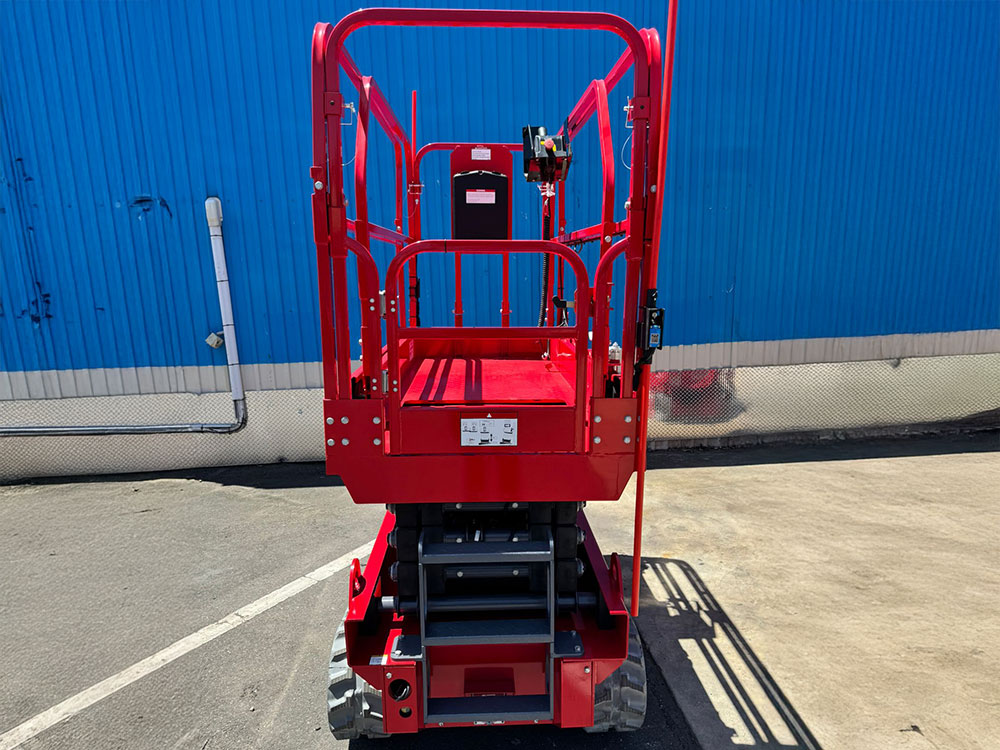

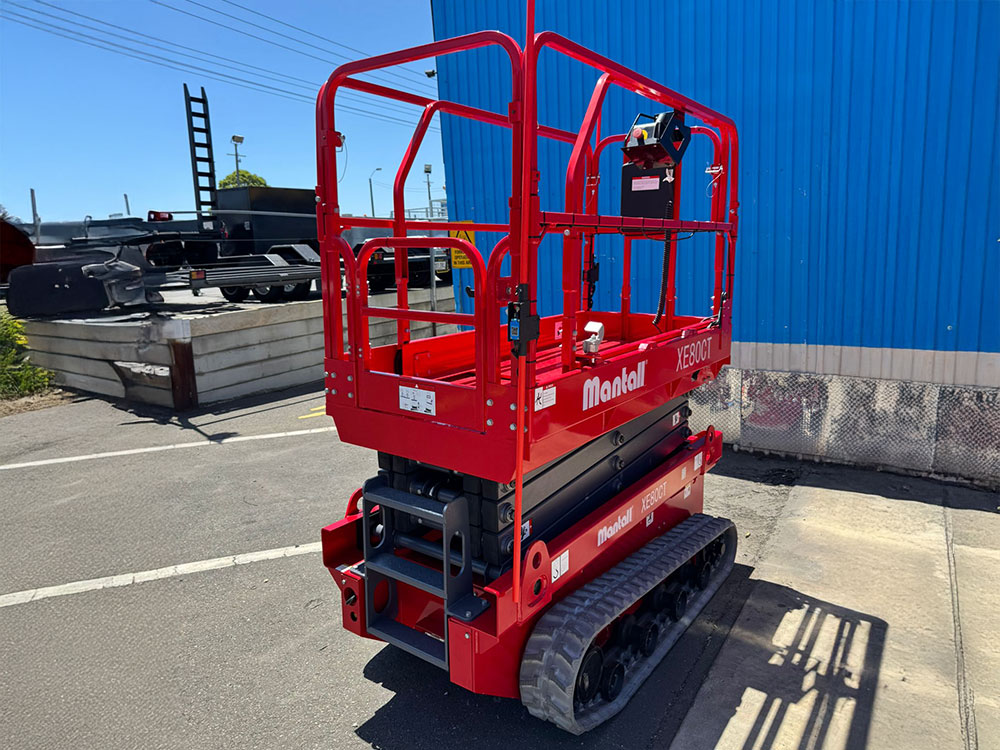

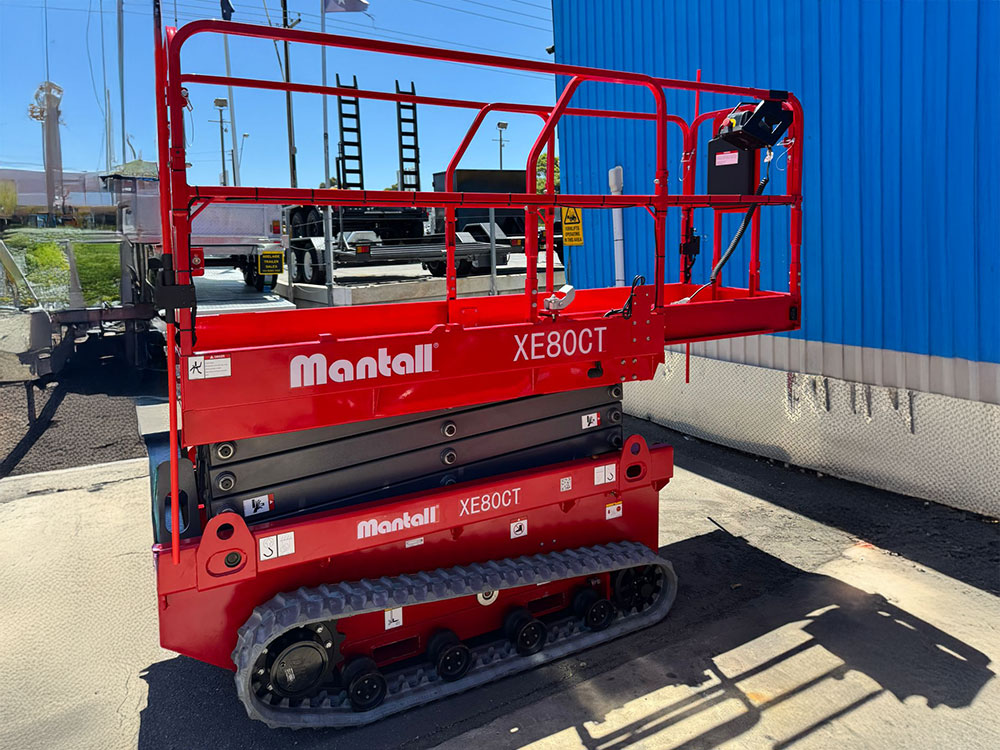

Crawling Type Scissor Lift
Standard Features:
0.9X1.84Mplatform- Tilt alarm system
- Fault diagnosis system
- Explosion-proof of the tubing
- Automatic brake system
- Safety brackets
- 200*72 hard rubber crawler
- Hour meter,power display
- External charging indicator
- AC socket in the platform
- All motion alarm
- Fault code display
- Flash light
- Buzzer

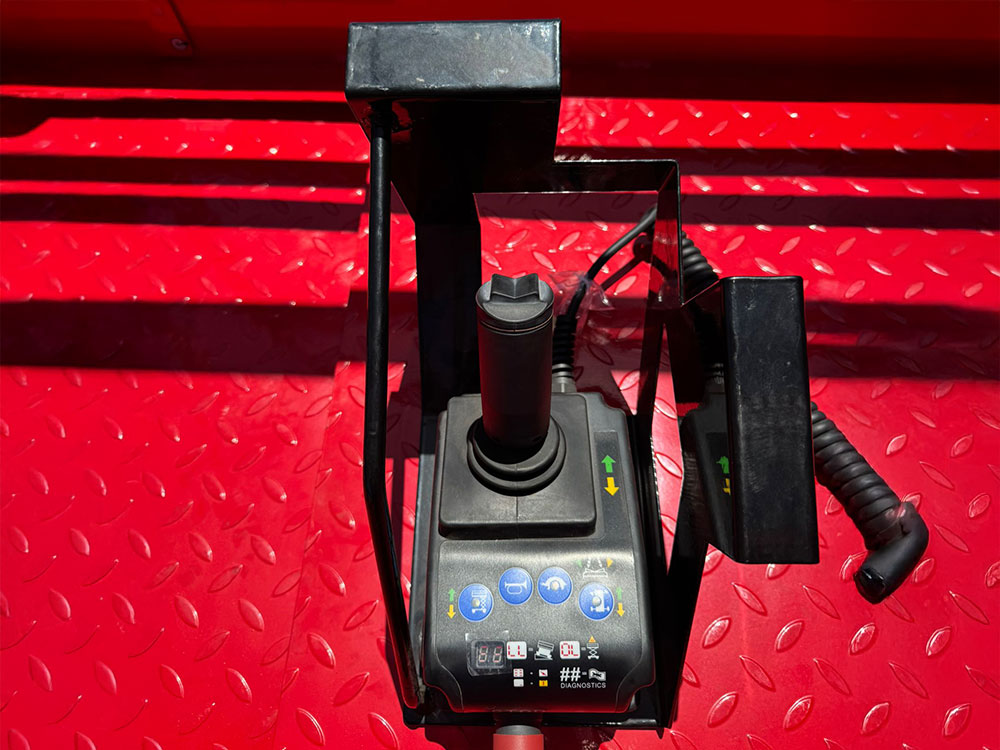

- Proportional control
- Emergency lower
- Manual brake release
- Maintenance free battery
0.9X1.84MplatformOption Features:
- Handheld fault diagnostic device
- Overload sensor
| Max. Working height | 8 m |
| Max. Platform height | 6 m |
| Max. Outreach | 0.9 m |
Price: $$0.00 Incl. GST
Dealer Costs not Included and May Vary.
Product Parameters
| Max. Working height | 8 m |
| Max. Platform height | 6 m |
| Max. Outreach | 0.9 m |
| Lifting capacity | 230 kg |
| Lifting capacity on the extension | 115 kg |
| Platform size B*C*A | 1.84×0.9×1.1m |
| Platform skirting board height | 0.13m |
| Overall length and width E*F | 2.15×1.0m |
| Height stowed D | 2.22m |
| Height-guardrails folded | 1.85m |
| Ground clearance(m) | 0.15m |
| Raising time/Lowering time(s) | 32/30s |
| Drive Speed, stowed | 1.7 Km/h |
| Drive Speed, raised | 0.7 Km/h |
| Gradeability | 40% |
| Tilt sensor- front to back | 3° |
| Tilt sensor- side to side | 1.5° |
| Drive Model | Electric Drive |
| Hydraulic tank capacity | 7L |
| Crawler size | Y200*72 -49Section |
| Max. platform occupancy | 2 pers |
| Power source | 24V/235Ah |
| Weight | 1235kg |
